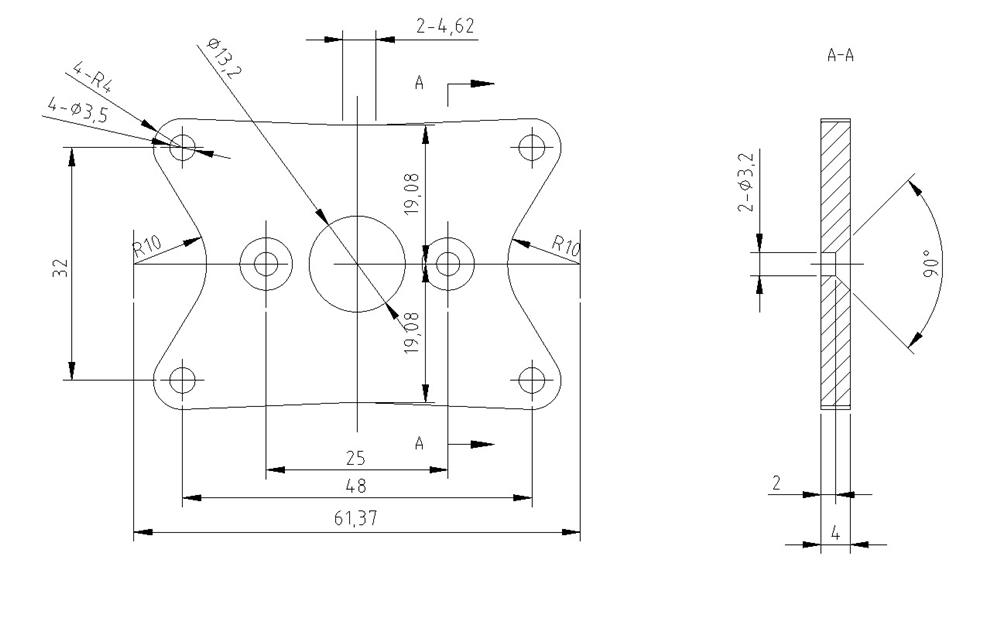

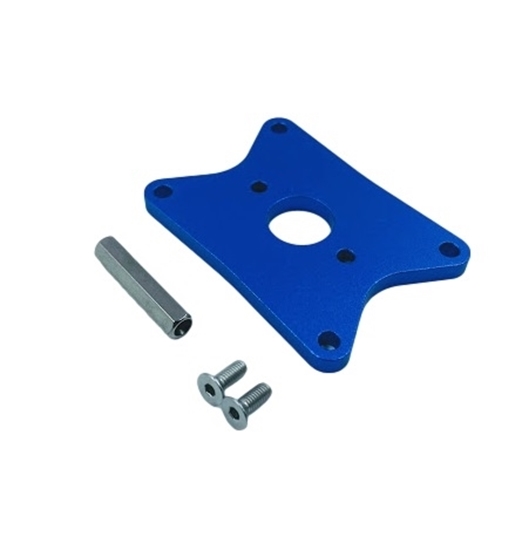

Sometimes you have the need for increased RPM. This 1:1 motor kit can be used with the Studica Maverick or any FTC legal motor such as the Neverest Classic (6600 RPM) or the REV HD Hex motor (6000RPM). The kit includes a faceplate which supports the Studica Robotics building platform. The shaft is press-fit onto the motor's shaft. It is recommended that the shaft be supported by a bearing (we recommend the 76302 for the Studica building system).
Whether you are constructing an intake, designing a shooter, or creating some other high-speed design, this 1:1 option allow you to get the full motor RPM output.
Specifications:
This Hub allows user that have existing Studica OMNI wheels (Part# 76260) or Mecanum Wheels (Part# 76243) to use REV Robotics 5mm Hex shafts and Hex Motors.
The 50mm (2") Drive Wheel can be used as a simple wheel providing good traction on carpet and tile flooring. They can also be used for intake systems.
Use with 1/2" hex shaft of use 6mm Shaft Hub to use connect 6mm D-Shaft Axles.
The 100mm (4") Flex Wheel can be used for intake systems and conveyors.
