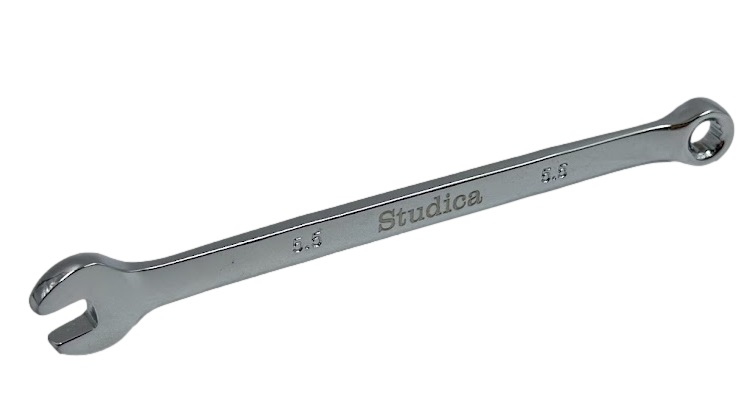

5.5mm Combination Wrench

• For 5.5mm nuts
• CRV material
• heat treatment
• surface matt chrome plated
• 100mm exposure shank
• socket head cold heading treatment

• Used with 5.5mm Nuts
• 50BV30 ratchet head
• heat treatment
• surface balck finished
• body #45 carbon steel material
• mirror polishing
• product engrave size and laser logo
• length 110mm

The Maverick 12V DC Gear Motor 61:1 w/Encoder was designed for strength and endurance.


Specifications:

• Voltage:                        12V DC
• Length:                         134mm
• Gear Ratios:                 61:1
• Shaft Diameter:            6mm D-Shaft
• Diameter:                     37mm
• Stall Torque:                 50.5 kg-cm (702 oz-in)
• RPM:                             100
• Encoder:                       Hall effect/Quadrature, 6CPR, 1,440 pulse per revolution
• Weight:                          326 grams
• Power cable:                 PP45, 45cm, 14AWG
• Encoder Cable:             45cm, 22AWG 4-pin
• Step File

The Studica Multi-Mode Smart Servo features all-steel gears and large amounts of torque. This angular programmable Servo can fill a variety of roles on your robot or project. In standard mode, it operates on a +/- 150-degree range. Using the Studica Smart Robot Servo Programmer (sold separately) the Multi-mode Smart Servo can be configured to run in continuous, standard, and custom angular mode. In continuous rotation mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.


Specifications:

• Type:                             Metal Brush Motor
• Horn Gear Spline:       25T (5.9mm)
• Size:                               40mm x 20.1mm x 38.3mm
• Weight:                          65g
• Maximum Speed:        62RPM at 6V
• Stall Torque:                 20kg.cm at 6V
• Voltage:                         6-7 4V
• Cable:                             22AWG, 75cm
• Step File

The Servo Horn 25T is made of anodized 6061-T6 Aluminum and is used with the Multi-Mode Smart Servo (75002) and the Studica building structure.

• Step File

The WSC2022SE Gurney includes the following items,

• Gurney Build Instructions -  Download
• Interactive Viewer - Open
• Gurney Step file - Download

The Servo Mount Flat Plate is one option to mount the Multi-Mode Smart Servo (75002) to the Studica building structure.

• Step File
