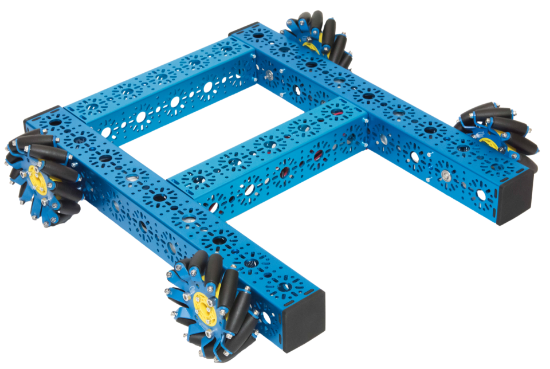

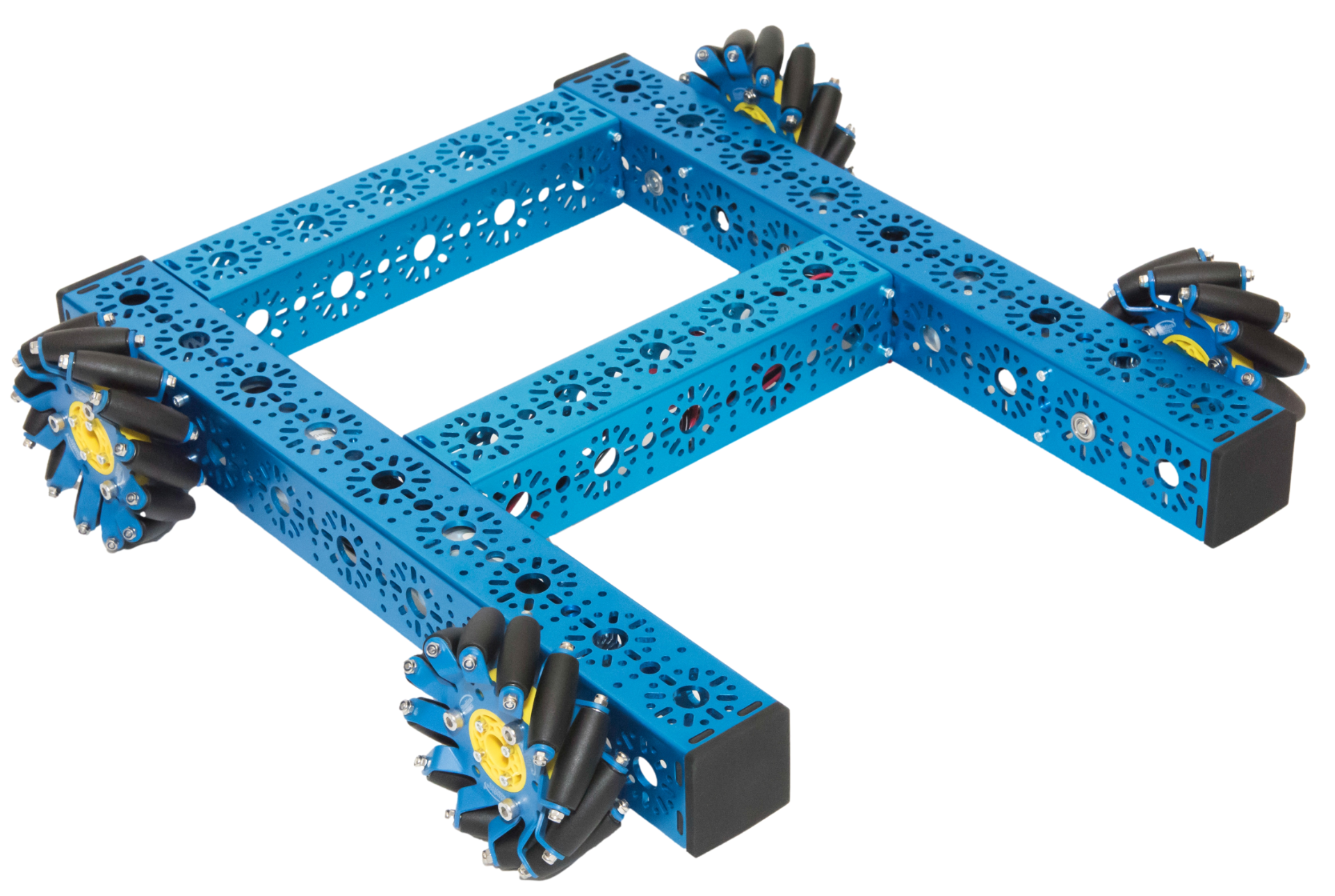

    FTC Drive Base Kit - v2

    The FTC Drive Base Kit v2 (70400-v2) is available for FIRST teams only and is fully FIRST legal. This is an upgrade from our first version (part # 70400). It includes our new slim mecanum wheels with bearings on all rollers, allowing you to make a wider base robot. It also has 4 NeveRest Orbital 20 Gearmotors with wires, our new Clamping Shaft Hubs, 4 bumpers and more hardware.

    MFR Part #: 70400-v2
    $629.00
    Availability: In stock

    Includes,

    • 2 - 432mm U-Channel  76010
    • 2 - 240mm U-Channel  76014 - NEW
    • 4 - Orbital Mount Plate  76138
    • 4 - NeveRest Orbital 20 Gearmotor JST-VH-2   am-3637b
    • 4 - NeveRest Motor REV Hub Encoder Cable   am-3926a
    • 2 - End Piece Plate (2 pack)  76143-2
    • 1 - 6mm x 70mm D-Shaft (6 pack)  76160-6
    • 1 - U-Channel Bumper (4 pack)  76505-4
    • 1 - Wire Grommet (10 pack)  76504-10
    • 4 - 30 Tooth Bevel Gear (2 Pack)  76219-2
    • 1 - Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack)  76302-12
    • 4 - Clamping Shaft Hub - v2 - 76280
    • 4 - 6mm D-Shape Collar Clamp - 76320
    • 1 - M3 x 6mm Socket Head Cap Screw (50 pack)  76213-50
    • 1 - M3 x 10mm Socket Head Cap Screw (100 pack)  76201-100
    • 1 - M3 x 12mm Socket Head Cap Screw (100 pack)  76202-100
    • 1 - M3 x 25mm Socket Head Cap Screw (50 pack)  76214-50
    • 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24
    • 1 - 100mm Slim Mecanum Wheel Set (Bearing Rollers, 2 left, 2 right) 76246
    Write your own review
    • Product can be reviewed only after purchase
    • Only registered users can write reviews
    *
    *
    • Bad
    • Excellent

    Includes,

    • 2 - 432mm U-Channel  76010
    • 2 - 240mm U-Channel  76014 - NEW
    • 4 - Orbital Mount Plate  76138
    • 4 - NeveRest Orbital 20 Gearmotor JST-VH-2   am-3637b
    • 4 - NeveRest Motor REV Hub Encoder Cable   am-3926a
    • 2 - End Piece Plate (2 pack)  76143-2
    • 1 - 6mm x 70mm D-Shaft (6 pack)  76160-6
    • 1 - U-Channel Bumper (4 pack)  76505-4
    • 1 - Wire Grommet (10 pack)  76504-10
    • 4 - 30 Tooth Bevel Gear (2 Pack)  76219-2
    • 1 - Flange Bearing 6mm ID, 14mm OD, 15mm Flange (12 pack)  76302-12
    • 4 - Clamping Shaft Hub - v2 - 76280
    • 4 - 6mm D-Shape Collar Clamp - 76320
    • 1 - M3 x 6mm Socket Head Cap Screw (50 pack)  76213-50
    • 1 - M3 x 10mm Socket Head Cap Screw (100 pack)  76201-100
    • 1 - M3 x 12mm Socket Head Cap Screw (100 pack)  76202-100
    • 1 - M3 x 25mm Socket Head Cap Screw (50 pack)  76214-50
    • 1 - Shaft Spacer Plastic 6mm ID x 10mm OD x 1mm L (24 pack)  76305-24
    • 1 - 100mm Slim Mecanum Wheel Set (Bearing Rollers, 2 left, 2 right) 76246
