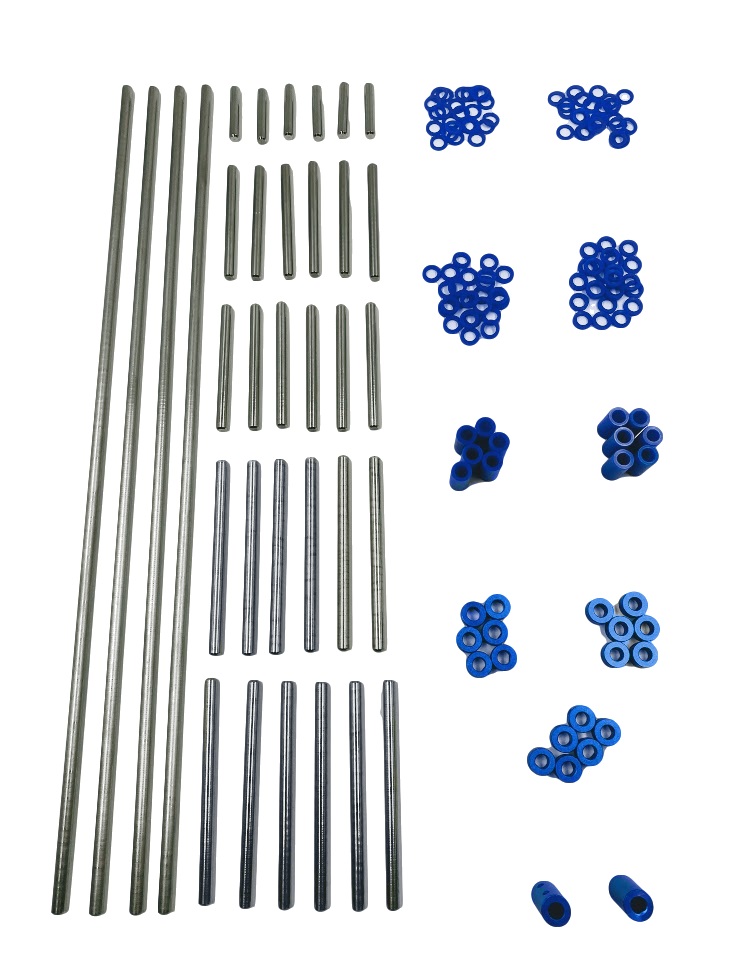

Shaft and Spacer Bundle

The Cobra Line Follower Array provides 4 X QRE1113 IR reflectance sensor mounted on a 9mm pitch Each sensor is comprised of two parts - an IR emitting LED and an IR sensitive phototransistor. When you apply power to the VCC and GND pins the IR LED inside the sensor will illuminate.

The Studica Line Sensor Board consists of 4 IR LED/phototransistor pairs, making it a great detector for a line-following robot.  The Line Sensor Board allows the robot to tell objects or surfaces apart based on how dark or light they are. It shines a beam of infrared light out onto the object, and measures how much light is reflected back.

Each sensor provides a separate analog voltage output. The sensor board is an infrared emitter/receiver that is able to differentiate between a dark surface (with low IR reflectivity – 3.3V to 5V) and a light surface (with high IR reflectivity – 0V to 0.5V). However, this range can vary depended on the installed height of the sensor board.

The optimum height distance is 3-5 mm; however, the reflectivity values will change depending on distance. A daylight filter is built into the sensor.

• 5VDC operating voltage (recommended)
• 70mA supply current
• Optimal sensing distance: 0.125" (3mm)
• Step File

The Studica Face Bearing Block can be mounted on any  Studica channel and bracket providing which will allow for a 6mm ID through hole for 6mm shafts (axles). It has a permanently installed Standard Sealed Bearing. Has 8 x M3 tapped through holes for easy mounting.

The Powerpole Extension Cable is 50cm long and 14AWG wire gauge to handle heavier loads.

The Studica Flat Bracket is a very strong  3mm x 40mm wide. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

• Material: 6061-T6 Aluminum
• Thickness - 3mm
• Width - 40mm
• Length - 96mm
• Step File

The Studica End Piece Plate is commonly fastened to the inside end of the U Channel. As with the other Studica Robotics building components, it has the common hole pattern which makes it easy to connect to other structure with very little or no additional machining required. You can easily connect to other channel, extrusions, bushings, bearing, mounting brackets and more so you can quickly assemble and disassemble robots and automated systems.

Specifications:

Material: 6061-T6 Aluminum

• Step File

The Studica 12V 3,000 mAh NiMH (nickel metal hydride) Battery Pack, PP45 comes with a w/20 amp fuse. It is a 10-cell, 12-volt rechargeable battery pac k that brings long-lasting power to motors and electronics that are used in the WorldSkills Mobile Robotics Collection. The Studica NiMH Battery Pack Charger, PP45, is required to charge the battery.

Specifications,

• Dimensions: 5 x 2.1 x 2.1 inches (115 mm x 45 mm x 50 mm)
• Weight: 1.32lbs (579 g)
• Built-in 20-amp replaceable fuse for safety
• 10-cell pack provides 3,000-mAh capacity for longer life
• PP45 connector for easy and safe connection to controller
• Step File

The Motor Mount Plate is used with the Maverick 12V DC Gear Motor  (Part# 75001) to attach it inside the anyone of the U Channels 76010 to 76018. This is an example of a chassis with 4 motors mounted inside the U-Channel using a Motor Mounting Plate.

• Step File
